Visualize cartilage structures

Summary

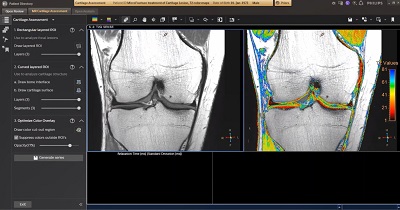

Enables the visualization of cartilage structures integrated with color-coded T2 maps. Positioning of cartilage-shaped, layered region of interest is used to assess variation of T2 values across the cartilage depth to determine the degradation of the cartilage.

Benefits

• The MR Cartilage Assessment application features a task-guided workflow for the quantitative analysis of T2 relaxation time to support cartilage assessment and disease status.
• The application provides segmentation tools, allowing measurements of cartilage layers and segments.
• T2 values are numerically and graphically displayed per layer and segment.

Workflow videos offer examples of a real life case based on the application you're currently using.

• Cartilage Assessment

This section contains printable tutorials that provide complete instructions for individual applications.

• Cartilage Assessment
